FILIUSAC - NETWORK FREQUENCY WELDING WITH COMFORT

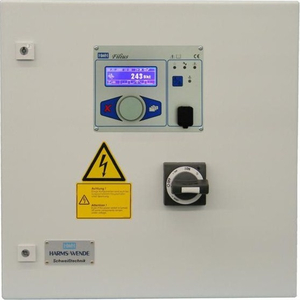

FiliusAC is the successor of our proven MPS 100/200/300 controller series. In addition to the well-known functions such as constant current control and point counter, a number of functions have been added. These are aimed on the one hand at benefit and on the other hand at comfort. Filius is characterized by a compact design, which fits into almost all welding cases. FiliusAC works almost exclusively with self-explanatory symbols. Turning and pressing the central control wheel makes operation child's play. Thanks to the USB interface, programs can be transferred between different controllers. Off-line programming via XFilius on the PC is also possible (option). With FiliusAC you can choose between the version Mono (8 welding programs) or Multi (32 programs). If you want to update an existing system this is no problem. Filius works with all common thyristor units. Filius is available in the well-known high design or as shown in the picture compact design. You still receive our MPS series as usual, but we recommend our Filius for new projects.
| Function | FiliusMono | Filius Multi | MPS Series |
|---|---|---|---|
| Number of programs | 8 | 32 | max 8 |
| Constant current regulation | No | Option | Option |
| Counter | 1 | 2 | 1 |
| Max. spot | 1 | 2 | 1 |
| Impulsations | 9 | 9 | 9 |
| Menu with text | partial | partial | yes |
| Language independent menues | yes | yes | no |
| Number of concurrent languages | 3 | 3 | 1 |
| Data backup | yes | yes | no |
| Data restore | yes | yes | no |
| Logfile (via USB) | yes | yes | no |
| Copy programs (intern) | yes | yes | no |
| Copy programs via USB | yes | yes | no |
| Internal program selection | yes | yes | no |
| External program selection | yes | yes | yes |
