Our Genius- Inverter for automotive: GeniusMFI 408L BUS and GeniusMFI Hand

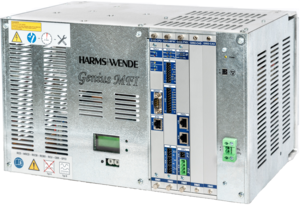

GeniusMFI 408L BUS - The fieldbus specialist of automotive applications
The inverter type series Genius MFI408L offers a maximum of functionality and flexibility. The version 'BUS' is the optimized inverter system of the automated manufacturing. Its basic equipment is assembled with Interbus or Profibus. Constant current regulation and electrode management are standard equipment of the 'BUS' inverter.
Quick constant current regulation offers you safety and reliability of the welding process.
The inverters are supplied with an EtherNet network interface as standard which you can interlink any devices with.
Operating concepts:
PC with XPegasus operating software (not included in the delivery).
Data communication over:
EtherNet 100/10 Mbit
Standard range of functions:
- 256-512 programs
- 3 current times
- Current upslope
- Current downslope
- Pulses
- Electrode management
- Interbus optical or
- Interbus electrical or
- Profibus or
- ProfiNet RT (IO operation)
- ProfiNet 2 channel electrical
- ProfiNet 2 channel optical
- DeviceNet
- CC-Link
- Ethernet-IP
- Constant current regulation (KSR)
Power range:
- 600 A maximum output current
- 3x400-480V, 50/60Hz
- 3x690V, 50/60Hz
- Air (forced)
- IQR adaptive regulation
- Archiving of data
- PQS - inline process monitoring
- S-inspector (distance)
- I-inspector (current)
- U-inspector (voltage)
- R-inspector: resistance (mill monitoring)
- H-inspector (regulation range)
- SP-Inspector (spillings monitoring)
- QI-inspector (quality)
Supply voltage:
- 3x400-480V, 50/60Hz
- 3x690V, 50/60Hz
Variants of cooling:
- Air (forced)
Optionally:
- IQR adaptive regulation
- Archiving of data
- PQS - inline process monitoring
- S-inspector (distance)
- I-inspector (current)
- U-inspector (voltage)
- R-inspector: resistance (mill monitoring)
- H-inspector (regulation range)
- SP-Inspector (spillings monitoring)
- QI-inspector (quality)
GeniusMFI Hand - The specialist of hand guns for automotive applications
The version 'Hand' is optimized for hand gun applications in automotive manufacturing, prototyping and tier suppliers. By default the inverter comes with 16 inputs and 16 outputs. Constant current regulation and electrode management are standard equipment of the 'Hand' inverter.
Two start functionality as well as fast constant current regulation offer you safety and reliability for the welding process.
Ethernet 100/10 Mbit network interface is standard to link any production inverters to the HMI XPegasus for a easy production overview.
Operating concepts:
Windows based PC with XPegasus operating software (sold separately).
Data communication over:
Ethernet with PC 100/10 Mbit.
Standard range of functions:
- 256 programs
- 3 current times
- Current upslope
- Current downslope
- Pulses
- Electrode management
- Digital 24V I/Os
- Constant current regulation(KSR)
- Two start inputs for two welding guns / working tools
Power range:
- 600 A maximum output current
Supply voltage:
- 3x400-480V, 50/60Hz
- 3x690V, 50/60Hz
Variants of cooling:
- Air
Optionally:
- IQR adaptive regulation
- Archiving of data
- PQS - inline process monitoring
- I-inspector (current)
- U-inspector (voltage)
- R-inspector: resistance (mill monitoring)
- SP-Inspector (spillings monitoring)
- QI-inspector (quality)
